Komatsu Cylinder Seal Kit 707-99-25660 Gasket Kit Fits Excavator WB97S-5 WB93S-5 WB97R-5 WB93R-5 WB91R-5
| Product Name | Komatsu Cylinder Seal Kit 707-99-25660 Gasket Kit Fits Excavator WB97S-5 WB93S-5 |
| Part No. | 707-99-25660 7079925660 |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent,and so on |
| Hardness | 70-90 Shore A |
| Color | Black, White or other |
| Size | Standard Size |
| MOQ | We accept trial order |
| Packing | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Port | HUAGNPU,China (Mainland) |
| Shipping | By airplane, ship |
| Express | Fedex,TNT,UPS,DHL |
| Customized | OEM & ODM are welcomed |
| Application | Excavator&Hydraulic Systerm |
| Condition | New |

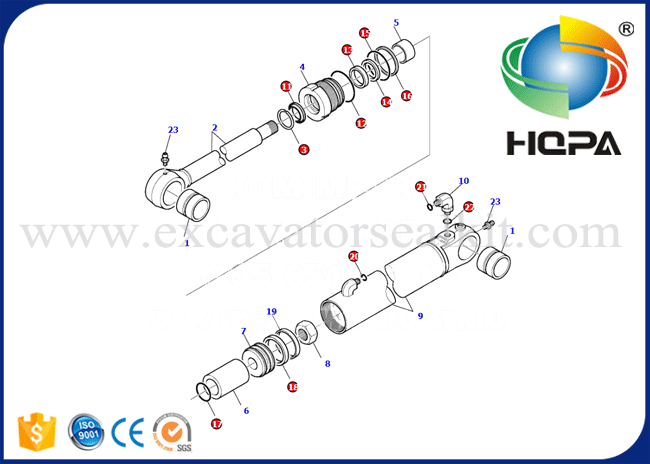

RELATION PARTS:
| NO. | NUMBER | NAME | QTY | OPTIONS |
| | 707-00-0Y892 | CYLINDER, ASSEMBLY | 2 | SN: F80003-UP |
| 1 | 07144-10606 | • BUSHING | 2 | SN: F80003-UP |
| 2 | 707-58-50H50 | • ROD, PISTON | 1 | SN: F80003-UP |
| 3 | 07179-12062 | • RING, BACK-UP | 1 | SN: F80003-UP |
| 4 | 707-29-90650 | • CYLINDER HEAD | 1 | SN: F80003-UP |
| 5 | 707-52-90250 | • BUSHING | 1 | SN: F80003-UP |
| 6 | 707-81-50361 | • SPACER | 1 | SN: F80003-UP |
| 7 | 707-36-90260 | • PISTON | 1 | SN: F80003-UP |
| 8 | 707-67-36010 | • NUT | 1 | SN: F80003-UP |
| 9 | 721-11-90671 | • CYLINDER | 1 | SN: F80003-UP |
| 10 | 02782-10516 | • ELBOW | 1 | SN: F80003-UP |
| | 707-99-25660 | • KIT, GASKET | 1 | SN: F80003-UP |
| 11 | 176-63-92240 | •• GASKET | 1 | SN: F80003-UP |
| 12 | 07000-12090 | •• O-RING | 1 | SN: F80003-UP |
| 13 | 707-51-50030 | •• GASKET | 1 | SN: F80003-UP |
| 14 | 707-51-50640 | •• GASKET | 1 | SN: F80003-UP |
| 15 | 07000-12085 | •• O-RING | 1 | SN: F80003-UP |
| 16 | 07146-02086 | •• RING, BACK-UP | 1 | SN: F80003-UP |
| 17 | 07000-13050 | •• O-RING | 1 | SN: F80003-UP |
| 18 | 707-44-90180 | •• RING, PISTON | 1 | SN: F80003-UP |
| 19 | 07156-00912 | •• PACKING, ROD | 1 | SN: F80003-UP |
| 20 | 02896-11012 | •• O-RING | 1 | SN: F80003-UP |
| 21 | 02896-11015 | •• O-RING | 1 | SN: F80003-UP |
| 22 | 07002-12034 | •• O-RING | 1 | SN: F80003-UP |
| 23 | 21D-09-89140 | FITTING, GREASE | 4 | SN: F80003-UP |
Our Other Product
Electric parts:
Steeper motor assy, solenoid valve, sensor, pressure switch, flameout solenoid, various starter switch, computer board, monitor, starting motor, alternator, generator.
Reduction gear parts:
Drive shaft, ring gear, sun gear, planet gear, pin, shaft, carrier,
Carrier assy, hub, bearing, swing reduction, travel reduction,
Casing, washer, oil seal, o-ring swing reduction, travel reduction, casing ,etc.
Engine parts:
Cylinder block, cylinder head, crankshaft, camshaft, liner kit
Liner, piston, piston ring, piston pin, rod &main bearing, bushing,
Gasket kit, oil pump, water pump, feed pump, fan bland, plunger
Delivery valve, nozzle, connecting rod, turbocharger, oil cover
Oil cooler, nozzle piping, thermostat, seat thermostat
Hydraulic parts:
Main pump, swing motor ,travel motor parts: piston ,block cylinder ,set plate, ball guide, shoe plate, swash plate, spring, washer, shaft, gear pump, pump seal kit, motor seal kit etc .
Undercarriage parts:
Track link assy, shoes track, front idler, track roller, carrier
Roller sprocker, teeth, adapter, pin teeth, track bolt & spring,
Pin ,bushing, bucket.
Welcom to contact us,we can provide the high quality and best price!
